| Operating Voltage | : | 9 ~ 33V DC |
| Reset Voltage | : | less than 1V |
| Start-Up Current | : | 120 μA. |
| Alarm Current | : | 40 mA (Max) |
| Remote Output | : | 15 mA maximum open collector |
| Thermal Rating | : | 59 °C (138 °F) |
| Rate of Raise of Temp | : | 11.1°C / min (20°F/min) |
| Smoke Sensitivity | : | (1.9 ± 0.76) % / ft |
| Air Velocity | : | 0 – 4000 fpm. |
| Operating Temperature | : | -10 °C to 37.8 °C |
| Humidity | : | 0 – 95% RH, non-condensing |
| Height | : | 46 mm with base |
| Diameter | : | 100 mm dia |
| Weight | : | 130 g with base |
| IP Rating | : | IP – 42 |
| Models | Description |
|---|---|
| RE-314B | Normal Base |
| Model | Description |
|---|---|

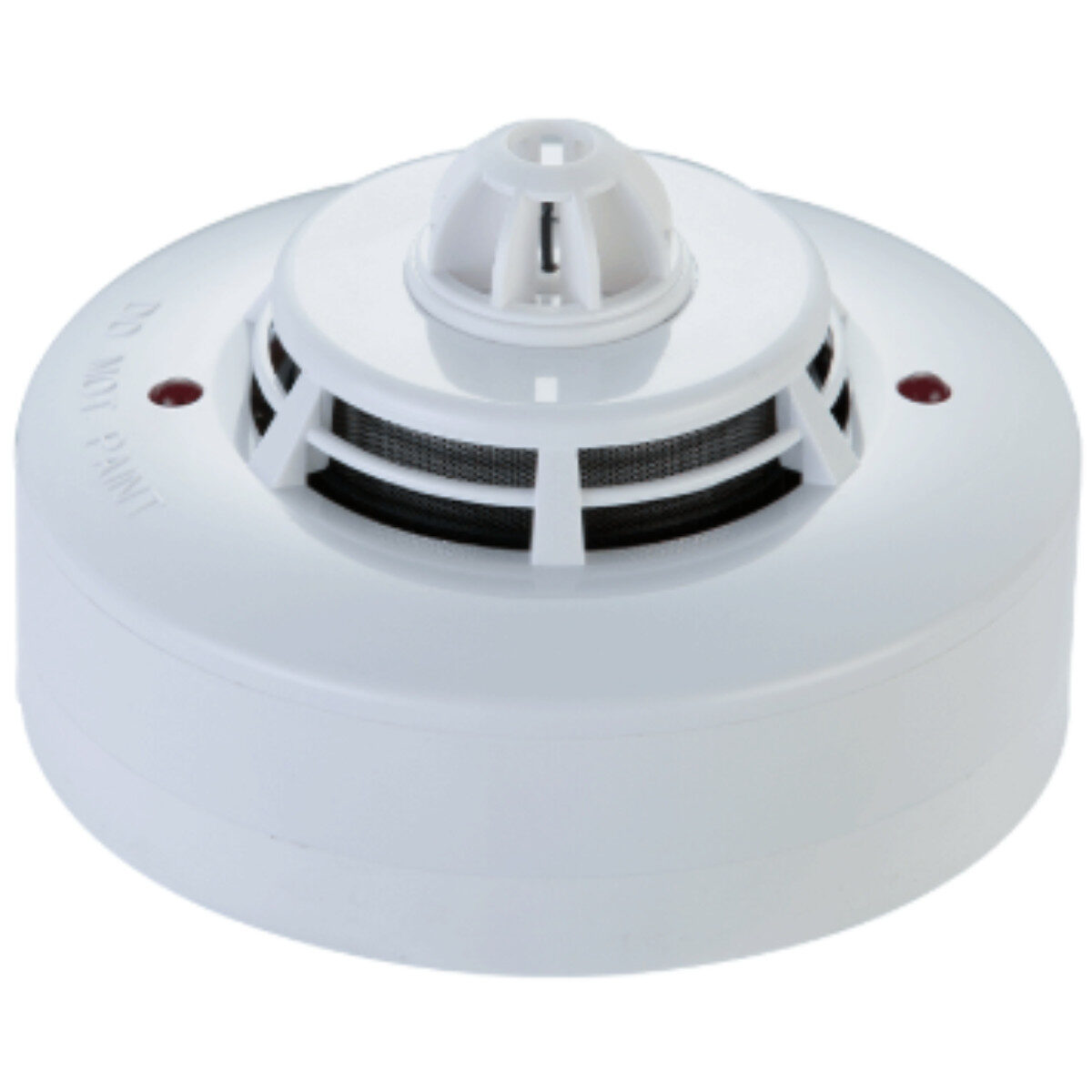

| RE 316SH-2L | Photoelectric RE 316SH-2L & Heat Detector |
| Brand | Ravel |
|---|
