Panasonic KX – HTS 824

The KX-HTS824 supports the following number of trunks.

Type KX-HTS824
Preinstalled Maximum
Total Number of Trunks 8 (6 if G.729a) 8 (6 if G.729a)
SIP
6 (G.711)
4 (G.729a)
6 (G.711)
4 (G.729a)
Analogue 4 8

Commitment to Quality

Built with excellence, delivered with trust.

Customer Satisfaction

Your happiness is our highest success.

Standard Designed

Crafted to meet industry standards with perfection.

  • Another unique feature is the built-in router and Wi-Fi access point.
  • The KX-HTS824 works as a voice processing platform and also as a network device.

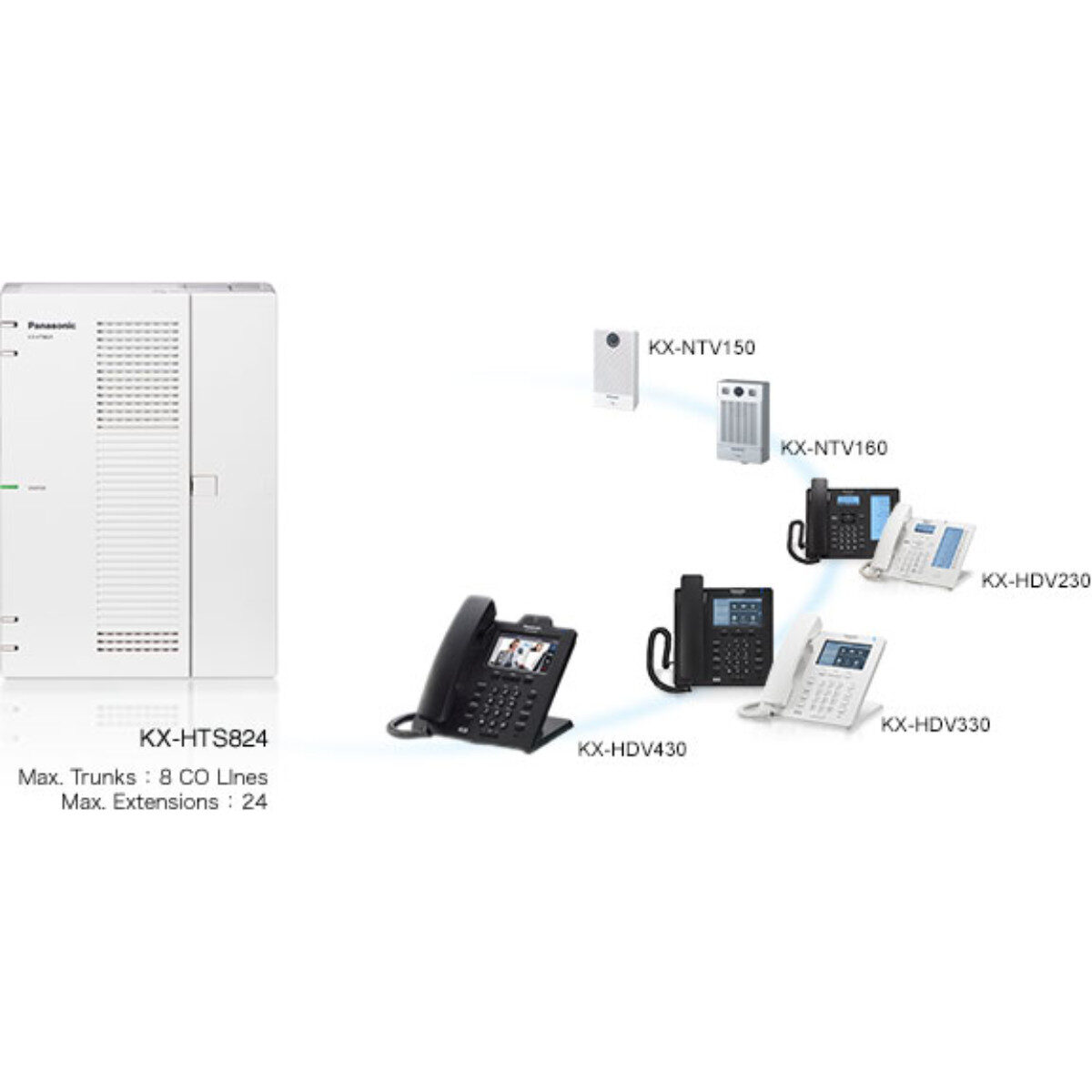

  • A full line-up of terminals is available for the KX-HTS824, enabling optimal communication for SMB businesses.
  • This system also achieves exclusive simplicity for setup and maintenance.
  • Even for business trends such as BYOD (Bring Your Own Devices), the KX-HTS824 brings you a solution with built-in functionality.

Maximum Terminal Equipment

The following shows the number of each terminal equipment type supported by the KX-HTS824.

Type KX-HTS824
Preinstalled Maximum
Extensions 24 24
SIP 24 24
Analogue 8 24
DISA (ch) 4* 4*
Built-in VM (ch) 4* 4*
Doorphone (Analogue) 0 2
Door Opener (Analogue) 0 2

* The DISA and VM has a total capacity of 4 channels.
